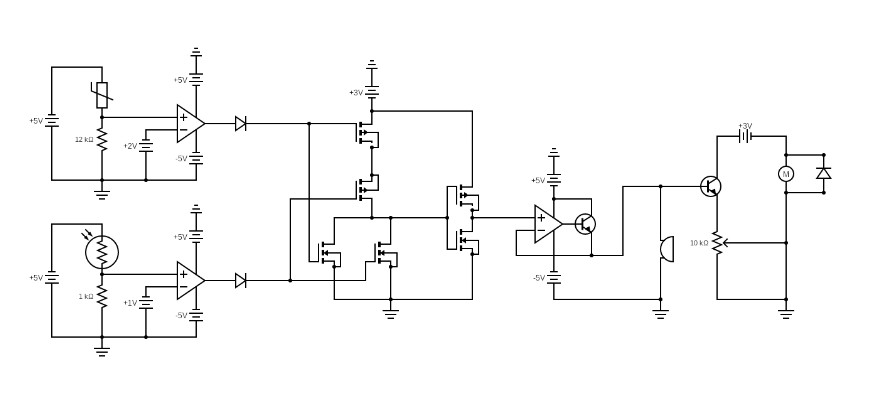

Two sensors inputted to an OR gate made out of MOSFET transistors using HEF4007 IC chip. The first one is for heat, done using a thermistor and a comparator configuration using UA741 OpAmp; the other one is similar but for motion with an LDR instead. Once either sensor is triggered, the gate output voltage would turn on a buzzer, and its amplified current turns on a DC motor whose speed is tuned by a potentiometer.
Other Contributors: Hussam Kobeissi, Farah Abu Khachfe
Skills Acquired
- Sensors tuning and logical implementation for monitoring mechanisms
- Logic gate implementation from scratch using discrete or IC transistors
- Voltage / current amplifier and comparator design for outputs and sensors
- Product survey for electronic devices suitable in terms of functionality and cost
- Datasheet analysis with full inspection of features & internal strcuture of electronic products
